Compass Magnetic Field Sensor -G197- /Vehicle Location Recognition Control Module -J603-: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 Volkswagen Tiguan Limited, 2017 Volkswagen Tiguan, 2016 Volkswagen Tiguan, 2015 Volkswagen Tiguan, and 2014 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

The magnetic field sensor for compass -G197- includes adhesive tape.

-- Clean the adhesive surface on the roof.

-- Connect the connector -2- to the Compass Magnetic Field Sensor -G197- -1-.

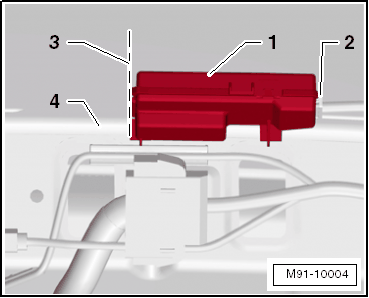

Fig 1: Aligning The Compass Magnetic Field Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Peel off the protective film on the magnetic field sensor for compass -G197-.

Align the magnetic field sensor for compass -G197- with the edge of the roof end -4- and the mark -3-.

Fig 2: Aligning The Compass Magnetic Field Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Firmly press the Compass Magnetic Field Sensor -G197- -1- onto the adhesive surface.

Install in reverse order of removal.

-- Calibrate the compass.
