Generator Overview
- Generator -C-
- Removing and installing. Refer to GENERATOR .
- Checking. Refer to Generator -C-, CHECKING .
- Voltage Regulator -C1- Removing and Installing, Bosch, Version 2. Refer to VOLTAGE REGULATOR, BOSCH (VERSION 2) .
- Ribbed Belt Pulley (with Free-Wheel) on Generator (Bosch), Removing and Installing. Refer to RIBBED BELT PULLEY WITH FREE-RUNNING HUB, BOSCH .
- Connector
- Terminal 30/B+
- B+ wire mount, refer to B+ WIRE CONNECTION TO GENERATOR
- Nut
- 20 Nm
- Cap
- Bolt
- Quantity: 4
- 20 Nm
No illustration
- B+ wire nut to rear side of generator: 20 Nm
- Wire holder nut to the back of the generator: 3.2 Nm
- Hex Bolt with Washer and Threaded Piece
- 2 Nm
- Protective Cap For Generator
- Phillips Head Screws
- 2 Nm
- Protective Cap For Carbon Brushes
- Voltage Regulator
- Removing and installing voltage regulator, refer to VOLTAGE REGULATOR .
- Generator
- Generator, removing and installing, refer to GENERATOR .
- Generator (GEN), checking, refer to Generator -C-, CHECKING .
- Securing B+ wire to generator, refer to B+ WIRE CONNECTION TO GENERATOR .
- Removing and installing the ribbed belt pulley, refer to RIBBED BELT PULLEY ON GENERATOR .
- Ribbed Belt
- For removing and installing, refer to [For transmission(s) 0A4, 09G] Removal and Installation .
- For the ribbed belt routing, refer to [For transmission(s) 0A4, 09G] Removal and Installation .
- Ribbed belt, checking, refer to RIBBED BELT, CHECKING .
- Removing and installing the ribbed belt pulley, refer to RIBBED BELT PULLEY ON GENERATOR .
- Collar Bolts
- 20 Nm
No Illustration
- B+ wire nut to rear side of generator: 20 Nm
- Wire holder nut to the back of the generator: 3.2 Nm

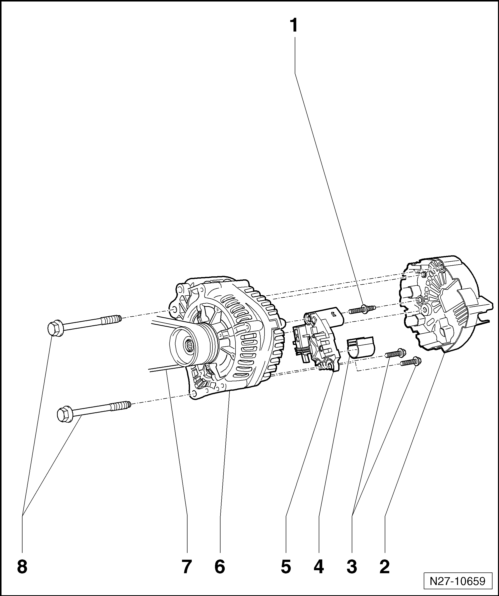

- Hex Bolt with Washer and Threaded Piece
- 2 Nm
- M4 x 20, M4 x 15
- Protective Cap For Generator
Wiring bracket to the Generator
- 3 Nm
- M5
- Phillips Head Screws
- 2 Nm
- M4 x 20
- Protective Cap For Carbon Brushes
- Voltage Regulator
- Removing and installing, refer to VOLTAGE REGULATOR .
- Generator
- Removing and installing, refer to GENERATOR .
- Checking, refer to RIBBED BELT, CHECKING .
- B+ wire mount, refer to B+ WIRE CONNECTION TO GENERATOR .
- Removing and installing the ribbed belt pulley, refer to RIBBED BELT PULLEY ON GENERATOR .
- Ribbed Belt
- For removing and installing, refer to [For transmission(s) 02E] Removal and Installation .
- For the ribbed belt routing, refer to [For transmission(s) 02E] Removal and Installation .
- Ribbed belt, checking, refer to RIBBED BELT, CHECKING .
- Removing and installing the ribbed belt pulley, refer to RIBBED BELT PULLEY ON GENERATOR .
- Collar Bolts
- 20 Nm
- M8 x 90
No Illustration
- B+ wire nut to rear side of generator: 20 Nm
- Wire holder nut to the back of the generator: 3.2 Nm
- Hex Bolt with Washer and Threaded Piece
- 2 Nm
- Cap Generator -C-
- Phillips Head Screws
- 2 Nm
- Cap For Carbon Brushes
- Voltage Regulator -C1-
- Removing and installing, refer to VOLTAGE REGULATOR .
- Generator -C-
- Removing and installing, refer to GENERATOR .
- Checking, refer to Generator -C-, CHECKING .
- B+ wire mount, refer to B+ WIRE CONNECTION TO GENERATOR .
- Removing and installing the ribbed belt pulley, refer to RIBBED BELT PULLEY ON GENERATOR .
- Ribbed Belt
- For removing and installing, refer to [For transmission(s) 0A4, 02E, 02Q] [For engine(s) CKRA] Removal and Installation or [For engine(s) CVCA] Removal and Installation .
- For the ribbed belt routing, refer to [For transmission(s) 0A4, 02E, 02Q] [For engine(s) CKRA] Removal and Installation or [For engine(s) CVCA] Removal and Installation .
- Ribbed belt, checking, refer to RIBBED BELT, CHECKING .
- Removing and installing the ribbed belt pulley, refer to RIBBED BELT PULLEY ON GENERATOR .
- Collar Bolts
- 20 Nm
No Illustration
- B+ wire nut to rear side of generator: 20 Nm
- Wire holder nut to the back of the generator: 3.2 Nm
