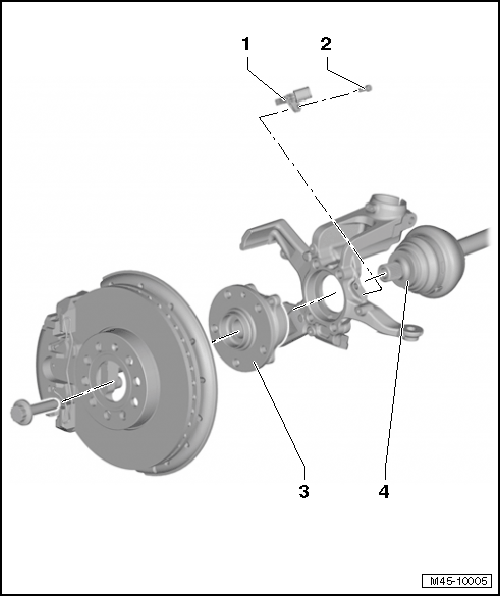

Overview - Front Axle Speed Sensor
- Front ABS Wheel Speed Sensor --
- Clean the inside of the hole and coat it with Hot Bolt Paste before installing the sensor.
- Removing and installing, refer to RIGHT/LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47- .
- Bolt
- 8 Nm
- Wheel Bearing Unit
- The ABS sensor ring is installed in the wheel bearing.
- Drive Axle
