Special Tools

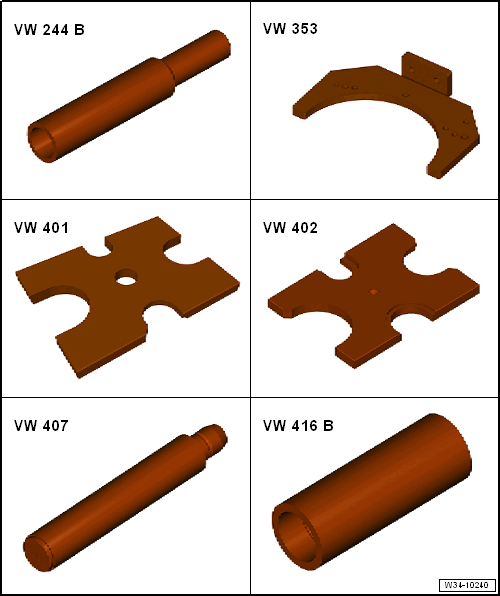

Special tools and workshop equipment required

• Bearing Driver - Multiple Use VW244B
• Transmission Support VW353
• Press Plate VW401
• Press Plate VW402
• Press Piece - Rod VW407
• Press Piece - 37 mm VW416B

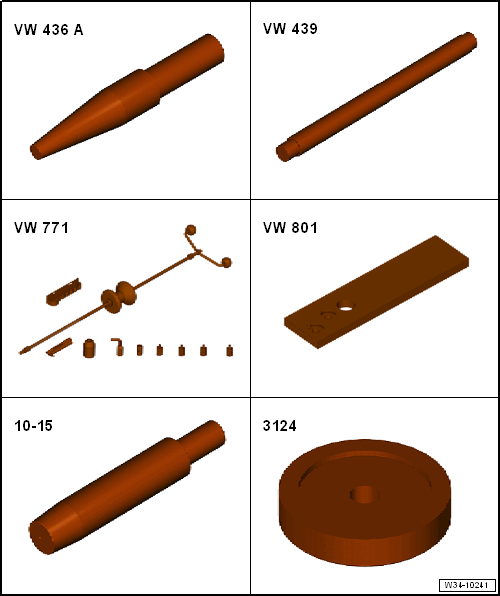

Special tools and workshop equipment required

• Guide Pin VW436A
• Press Piece - Guide Pin VW439
• Slide Hammer Set VW771
• Crankshaft Holding Fixture VW801
• Guide Pins 10-15
• Press Piece - Pivot Mount Bushing 3124

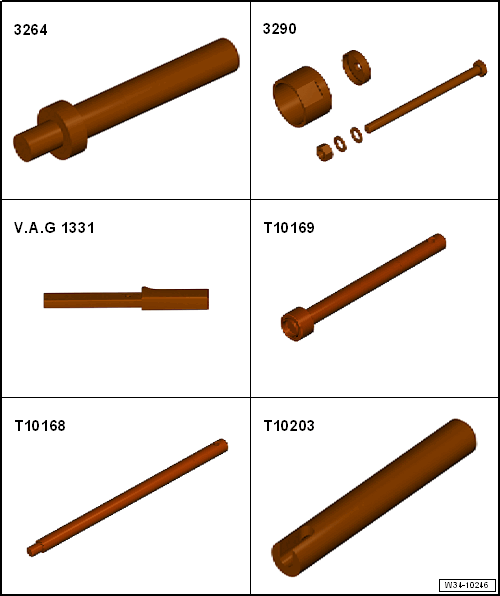

Special tools and workshop equipment required

• Bearing Installer - Crankshaft Pilot Bearing 3264
• Subframe Support Tool 3290
• Torque Wrench 1331 5-50 Nm VAG1331
• Bushing Driver - Selector Shaft T10168
• Locking Sleeve Drift T10169 or Locking Sleeve Drift T10362, refer to Figure
• Breather Tube Tool T10203

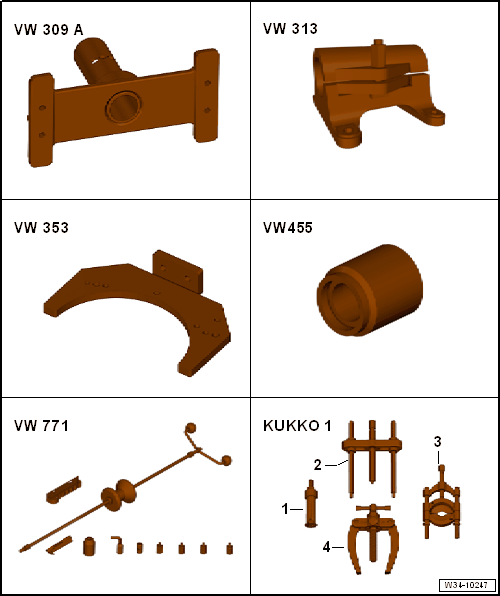

Special tools and workshop equipment required

• Holding Plate VW309A
• or Holding Plate VW309A
• Holding Fixture VW313
• Transmission Support VW353
• Press Piece - Multiple Use VW455 or Press Piece - Front Wishbone 3160
• Slide Hammer Set VW771
• -1- Puller - Kukko Internal - 12-16 mm 21/01
• -3- Puller - Kukko Quick Action Separating Tool - 5-60 mm 17/0
• -4- Puller - Kukko Counterstay 22/1

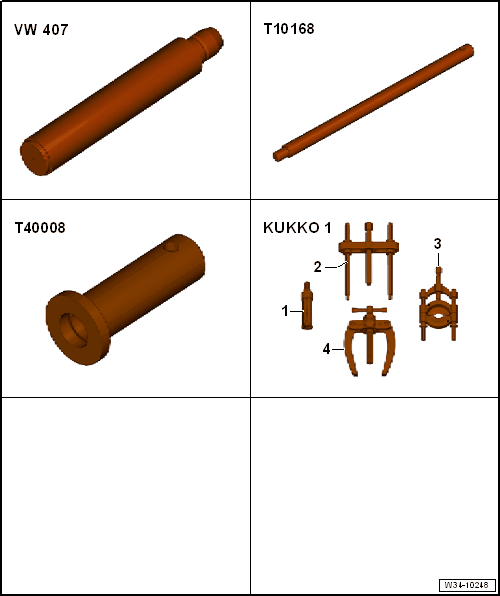

Special tools and workshop equipment required

• Press Piece - Rod VW407
• Bushing Driver - Selector Shaft T10168
• Seal Installer - Drive Axle T40008
• -1- Puller - Kukko Internal - 14-19 mm 21/2
• -1- Puller - Kukko Internal - 20-30 mm 21/4
• -4- Puller - Kukko Counterstay 22/1
• -4- Puller - Kukko Counterstay 22/2

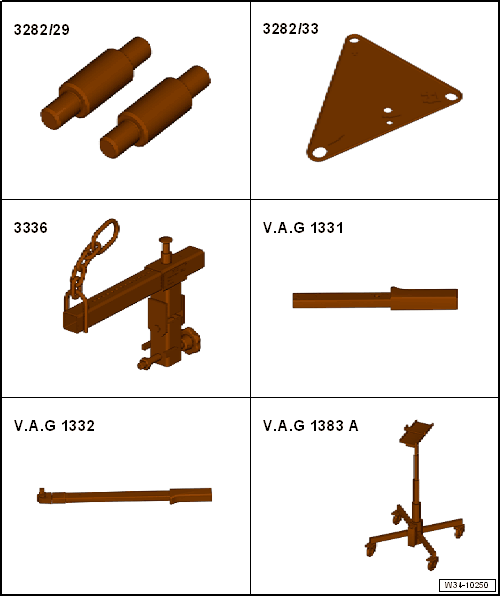

Special tools and workshop equipment required

• Transmission Support - Pins 293282/29
• Transmission Support - Mounting Plate 333282/33
• Transmission Support Elements (determine when mounting the Adjustment Plate on the Transmission Support)
• Transmission Support Jig 3336 to transport the transmission.
• Torque Wrench 1331 5-50 Nm VAG1331
• Torque Wrench 1332 40-200 Nm VAG1332
• Engine and Gearbox Jack VAS6931
• or Engine and Gearbox Jack VAS6931

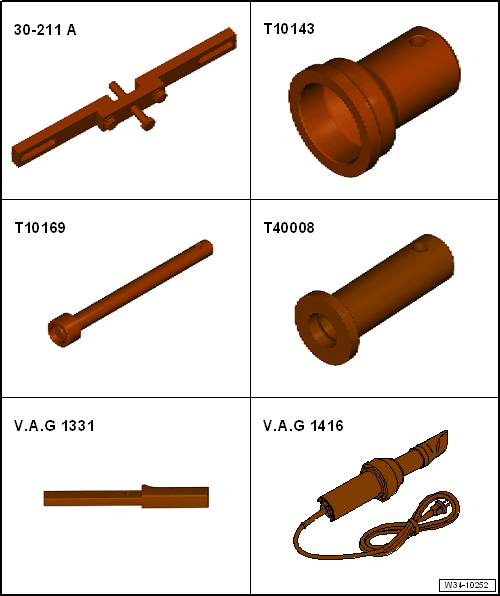

Special tools and workshop equipment required

• Bracket - Multiple Use 30-211A
• Seal Installer - Drive Flange T10143 or Seal Installer - Output Shaft Oil Seal T10180
• Locking Sleeve Drift T10169
• or Locking Sleeve Drift T10362, refer to Figure
• Seal Installer - Drive Axle T40008
• Torque Wrench 1331 5-50 Nm VAG1331
• Hot Air Blower VAG1416

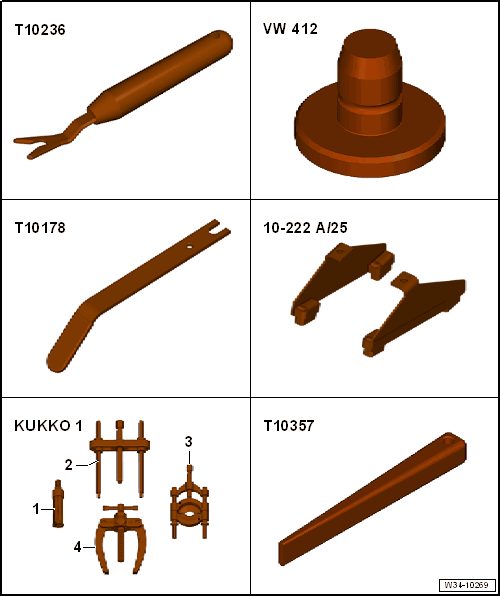

Special tools and workshop equipment required

• Window Release Tool T10236
• Press Piece - Multiple Use VW412
• Over-Center Spring Assembly Tool T10178 or flat iron, 200 x 25 x 5
• Engine Support Bridge - Engine Support 2510-222A/25 or flat iron, 350 X 30 X 5
• - 2- = Counter-Support for example, from Kukko Series 16
• Wedge T10357

Special tools and workshop equipment required

• Vehicles with 2.0L 103 kW Turbo diesel engine
• Engine Support - Bracket w/ Spindle and Hook 10-222A/10
• Engine Support Bridge - Spindle 10-222A/11
• Engine Support - Supplement Kit T40093A
• Vehicles with 2.0L 110 kW Turbo diesel engine
• Engine Support Bridge - Engine Support 310-222A/32
• Spindle from Engine Support Bridge 10-222A
• Continuation for all
• Engine Support Bridge 10-222A
• Engine Support Bridge - Engine Support 2810-222A/28
• Engine Support Bridge - Engine Support 28-2 10-222A/28-2
• Engine Support Bridge - Engine Support 31 - Adapter 110-222A/31-1
• Engine Support Bridge - Engine Support 31 - Adapter 210-222A/31-2
• Engine Support - Basic Set T40091
• Transmission Support 3282

Special tools and workshop equipment required

• Connecting Pin T10027A
  Fig 10: Identifying Connecting Pin T10027A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Tensioning Strap T10038
  Fig 11: Identifying Tensioning Strap T10038

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Press Piece - Block T10083
  Fig 12: Identifying Press Piece - Block T10083

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Puller - Crankshaft/Power Steering Seal T20143/1
  Fig 13: Identifying Crankshaft/Power Steering Seal Puller

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clip Pliers VAG1275A
  Fig 14: Identifying Hose Clip Pliers

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane VAS6100
  Fig 15: Identifying Shop Crane

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane - Drip Tray VAS6208
  Fig 16: Identifying Drip Tray

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Holding Plate VW309A
  Fig 17: Identifying Holding Plate

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Holding Fixture VW313
  Fig 18: Identifying Holding Fixture

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Press Piece - Shift Rod/Alternator VW423
  Fig 19: Identifying Press Piece - Shift Rod/Alternator

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pry Lever 80-200
  Fig 20: Identifying Pry Lever

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clamps - Up To 25 mm 3094
  Fig 21: Identifying Hose Clamps

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• For oil filler plug with multi-point fitting Triple Square Socket Driver 3357.
  Fig 22: 3357 Triple Square Socket Driver

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Trim Removal Wedge 3409
  Fig 23: Identifying Trim Removal Wedge

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
