Overview - Operating Cables: Notes

NOTE:

Lubricate the bearing areas and the sliding surfaces. Grease allocation.

Fig 1: Exploded View Of Operating Cables

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Gearshift Cable
- Attach to the cable retainer -item 17-.
- Installed position, refer to SELECTOR MECHANISM INSTALLATION POSITION .
Selector Cable
- Attach to the cable retainer -item 9-.
- Installed position, refer to SELECTOR MECHANISM INSTALLATION POSITION .
Selector Housing
Lock Washer
- Replace after removing
- Be careful not to damage the cables when removing them
Cable Mounting Bracket
- Plastic
Grommet
- cable mounting bracket to transmission
Spacer
Nut
- 20 Nm
- for the cable bracket
Cable Retainer
- For attaching the selector cable to the relay lever
- Adjust the gearshift mechanism after installing, refer to SELECTOR MECHANISM, ADJUSTING .
- Do not interchange, cable locking mechanisms for selector cable on linkage lever and for shift cable on transmission shift lever are different
- Allocation, refer to Fig 2.
- Remove from the relay lever Figure
- Press onto the relay lever, refer to Figure
Relay Lever
- Plastic
- Installed position, refer to Fig 5.
- Remove and install together with the cable retainer -item 9-
- To install, lubricate, refer to Figure
- Adjust the gearshift mechanism after installing, refer to SELECTOR MECHANISM, ADJUSTING .
- On the gearshift cover, disconnecting and reconnecting, refer to Figure
Sliding Shoe
Gearshift Shaft with Gearshift Cover
- (Shift unit)
Clip
- For the relay lever
Gearshift Lever
- With a balance weight
- Insert so that master spline aligns with shift rod, refer to Fig 3
- To install, lubricate, refer to Fig 4
- Adjust the gearshift mechanism after installing, refer to SELECTOR MECHANISM, ADJUSTING .
- Installed position, refer to Fig 5.
Nut
- 25 Nm
- Replace after removing
- Self-locking
Lock Washer
- Removing, refer to Fig 7.
- Replacing
Cable Retainer
- For attaching the shift cable to the transmission shift lever
- Adjust the gearshift mechanism after installing, refer to SELECTOR MECHANISM, ADJUSTING .
- Do not interchange, cable locking mechanisms for selector cable on linkage lever and for shift cable on transmission shift lever are different, refer to Fig 2.
Lock Washer
- Be careful not to damage the cables when removing them
- Replace after removing
Hex Bolt
- 20 Nm
- Quantity: 2
- For the cable bracket

Fig 2: Allocation Of Cable Retainers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

These holes have different diameters.

Cable Retainer For:	Dimension "a"
-1- Shift cable to gearshift lever	8.5 mm
-2- Selector cable to relay lever	10 mm

Fig 3: Identifying Installation Of Transmission Shift Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- When positioning the transmission shift lever, make sure the tooth gap -arrow A- is placed over the missing selector shaft teeth -arrow B-.

Fig 4: Identifying Transmission Shift Lever Guide Rail Lubrication Area

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Lubricate the selector lever glide track -B-, into which the relay lever engage, especially carefully.
Grease allocation

NOTE:

The graphic of the gearshift lever may differ from the Original part.

Fig 5: Identifying Transmission Shift Lever Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Gearshift Lever with Balance Weight
Clip
The relay lever fits into the sliding rail on the transmission selector lever via the sliding shoe -arrow-.

Fig 6: Identifying Sequence To Release Retainers For Shift And Selector Cables

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the safety mechanism all the way forward in direction of -arrow 1- and lock it in direction of -arrow 2-.

-- Remove the cable -B- from the cable retainer -A-.

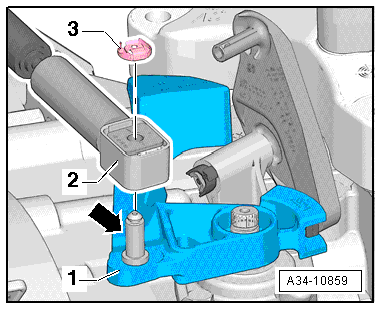

Fig 7: Identifying Shift Cable, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
