Overview - Gearshift Mechanism

NOTE:

Disconnect the ground cable from the battery when working on the gearshift mechanism inside the engine compartment, refer to Battery with Visual Indicator, Standard .

Connect battery and follow the procedures to be performed after connecting a battery, refer to Battery with Visual Indicator, Standard .

Remove the complete air filter housing when working on the gearshift mechanism in the engine compartment, refer to [For engine(s) CKRA] Air Filter Housing Overview or [For engine(s) CVCA] Air Filter Housing, Removing and Installing .

The shift mechanism must be removed in order to replace the operating cables, refer to SELECTOR MECHANISM, REMOVING AND INSTALLING

Do not bend the operating cables.

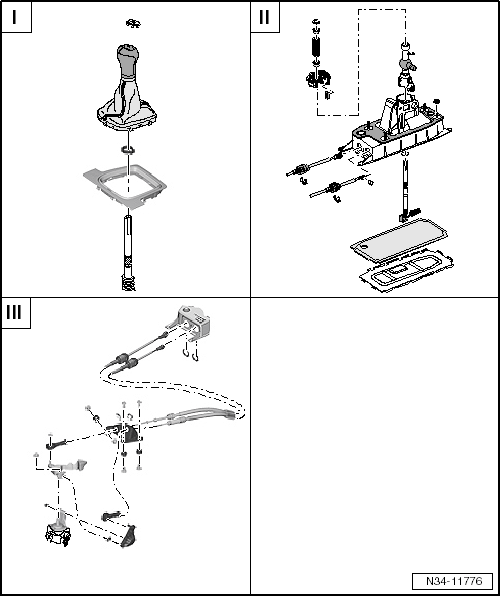

Fig 1: Identifying Gearshift Knob, Cover, Lever, Housing And Operating Cables

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

I -
Refer to OVERVIEW - GEARSHIFT KNOB AND COVER
II -
Refer to OVERVIEW - GEARSHIFT LEVER AND GEARSHIFT HOUSING
III -
Refer to OVERVIEW - OPERATING CABLES
