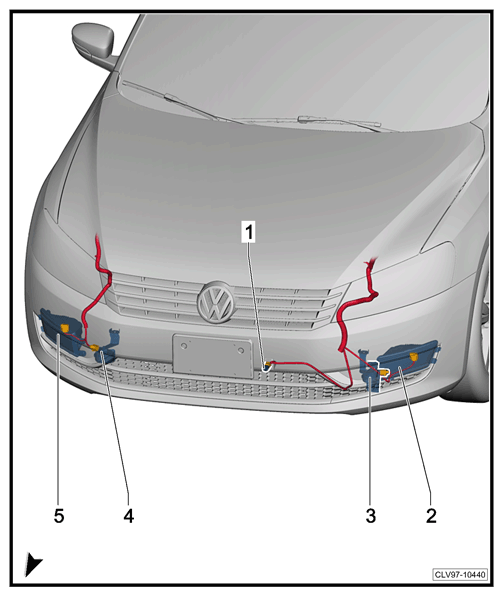

Front Bumper

  1. Outside air temperature sensor -G17-
  2. Left front fog lamp bulb -L22-
  3. High tone horn -H2-
  4. Low tone horn -H7-
  5. Right front fog lamp bulb -L23-
G12751103Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
