2.5L SRE, CBTA/CBUA Front

  1. Intake air temperature sensor -G42-
  1. Manifold absolute pressure sensor -G71-
  2. Oil pressure switch -F1-
  3. Reduced oil pressure switch -F378-
  4. Oil pressure regulation valve -N428-
  5. Engine speed sensor -G28-
  6. Generator with voltage regulator -CX1-
  7. A/C compressor regulator valve -N280-

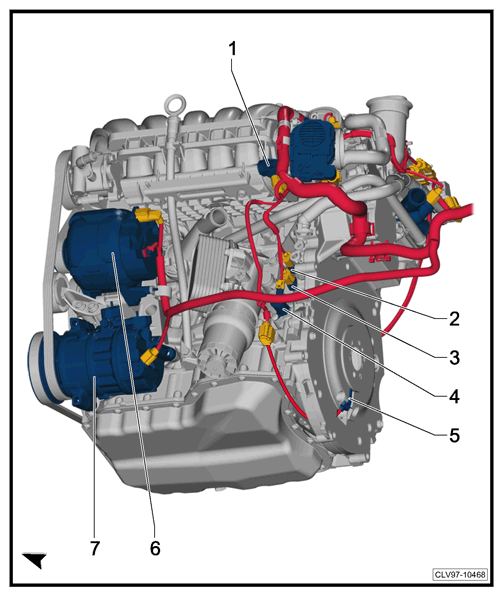

G12751091Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
