Windshield Washer System Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 Volkswagen Tiguan Limited, 2017 Volkswagen Tiguan, 2016 Volkswagen Tiguan, 2015 Volkswagen Tiguan, and 2014 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

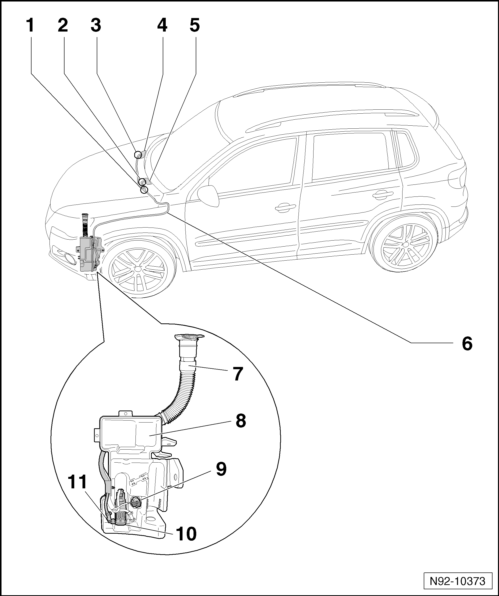

Two different versions of the washer fluid reservoir may be installed depending on the vehicle equipment. Vehicles with headlamp washer system is shown in the figures.
- 1 -
Y-Connection
- Divides washer fluid line to the windshield washer spray nozzles.
- 2 -
Angle Coupling
- Connection at spray nozzle for windshield washer system, left.
- Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- 3 -
Angle Coupling
- Connection at spray nozzle for windshield washer system, right.
- Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- 4 -
Right Spray Nozzle for Windshield Washer System
- Removing and installing, refer to WINDSHIELD WASHER SPRAY NOZZLES .
- Adjusting, refer to WINDSHIELD WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
- 5 -
Left Spray Nozzle for Windshield Washer System
- Removing and installing, refer to WINDSHIELD WASHER SPRAY NOZZLES .
- Adjusting, refer to WINDSHIELD WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
- 6 -
Hose
- Hose repair, refer to HOSES, REPAIRING .
- 7 -
Connecting Pipe with Filler Tube to the Reservoir
- Removed and installed together with reservoir, refer to WINDSHIELD WASHER FLUID RESERVOIR .
- 8 -
Tank for Window Washer System
- Removing and installing, refer to WINDSHIELD WASHER FLUID RESERVOIR .
- Tightening specification for the bolts and nuts that secure the reservoir to the body: 8 Nm.
- 9 -
Windshield Washer Fluid Level Sensor -G33-
- No replacement part.
- Removing and installing, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR -G33- .
- 10 -
Windshield and Rear Window Washer Pump -V59-
- Removing and installing, refer to WINDSHIELD AND REAR WINDOW WASHER PUMP -V59- .
- 11 -
Angle Coupling
- Connection to Windshield and Rear Window Washer Pump -V59-
- Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Bolts: windshield washer fluid reservoir to body - 8 Nm
- Bolt: horn retaining plate to longitudinal member - 20 Nm
