Service Position, Implementing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 Volkswagen Tiguan Limited, 2017 Volkswagen Tiguan, 2016 Volkswagen Tiguan, 2015 Volkswagen Tiguan, and 2014 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Guide Pins T10093
Torque Wrench 1331 5-50 Nm VAG 1331
Torque Wrench 1332 40-200 Nm VAG 1332

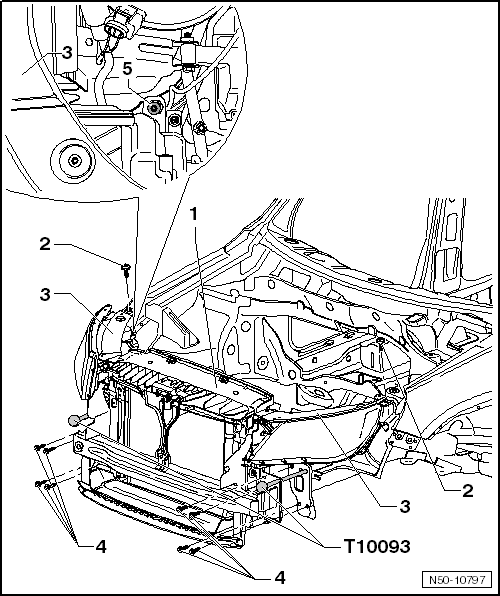

Fig 1: Implementing Service Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front bumper cover (18° slope angle, refer to FRONT BUMPER COVER .

-- Remove the front bumper cover (28° slope angle), refer to FRONT BUMPER COVER .

-- In vehicles with charge air cooler, disconnect pressure hoses, refer to PRESSURE HOSES, REMOVING .

-- Remove the bolts -4- at left and right longitudinal member.

-- Remove rear bolt -5- from the left and right headlamp.

-- Install the Guide Pins T10093 on the left and right longitudinal member.

-- Remover the upper left and right bolts -2- on the angle brackets -3-.

-- The lock carrier -1- together with the angle brackets -3- can be pulled approximately 10 cm forward onto the Guide Pins T10093.
