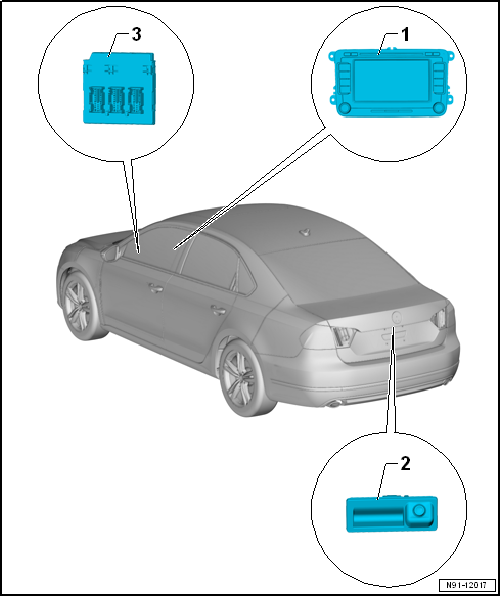

Overview - Rearview Camera System
- Radio/RNS -RX1-
- Installed location: inside the center console in the front
- Removing and installing, refer to Radio/RNS -RX1-, REMOVAL AND INSTALLATION .
- Rearview Camera -R189-
- Nut tightening specification: 6 Nm
- Installed location: inside the rear lid handle button
- Removing and installing, refer to Rearview Camera -R189-, REMOVAL AND INSTALLATION .
- Vehicle Electrical System Control Module -J519-
- Component location: on the left front relay carrier under the instrument panel
