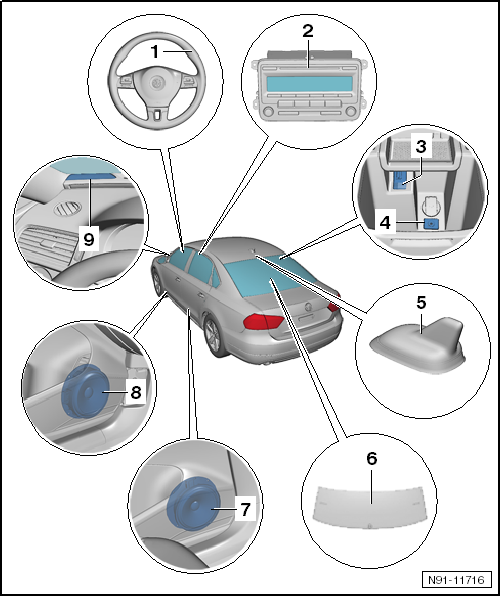

Overview - Rcd 310 Radio System
- Multifunction Steering Wheel
- Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .
- Radio -R-
- Radio/RNS -RX1- securing bolt tightening specification: 1.5 Nm
- RCD 310
- Removing and installing, refer to Radio/RNS -RX1-, REMOVAL AND INSTALLATION .
- Connector Overview, refer to RCD 310 CONNECTOR ASSIGNMENTS .
- Anti-Theft coding, refer to Anti-Theft Coding
- External Multimedia Device Interface -R215-
- Depending on the vehicle equipment level
- Installed in the center console
- Refer to EXTERNAL AUDIO SOURCE CONNECTION, REMOVAL AND INSTALLATION .
- External Audio Source Connection -R199-
- Installed in the center console
- Refer to EXTERNAL AUDIO SOURCE CONNECTION, REMOVAL AND INSTALLATION .
- Roof Antenna -RX5-
- With Satellite Tuner Antenna -R172- (depending on the vehicle equipment level)
- Located on the roof at the back of the vehicle
- The antenna is technically matched to the vehicle equipment level
- Refer to OVERVIEW - ANTENNA SYSTEM .
- Rear Window Defogger -Z1-
- With Antenna -R11- and Radio Antenna 2 -R93-
- For radio reception with diversity function
- Refer to OVERVIEW - ANTENNA SYSTEM .
- Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-
- Installed inside the left and right rear doors
- Refer to SOUND SYSTEM, REMOVAL AND INSTALLATION .
- Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-
- Installed inside the left and right front doors
- Refer to SOUND SYSTEM, REMOVAL AND INSTALLATION .
- Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
- Installed inside the front of the instrument panel on the left and right sides
- Refer to SOUND SYSTEM, REMOVAL AND INSTALLATION .
