Overview - External Audio Source Connection

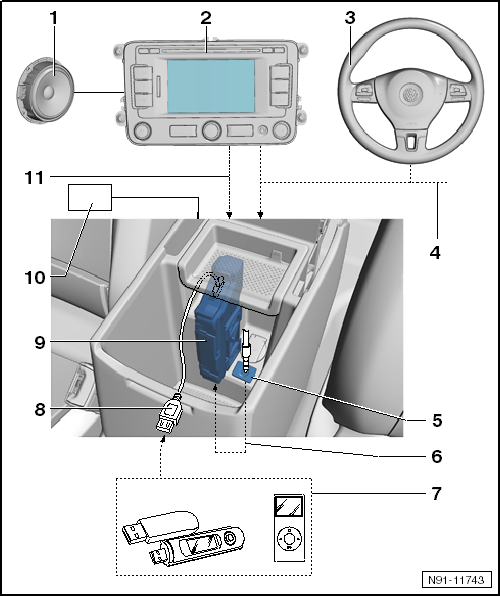

Fig 1: Exploded View Of External Audio Source Connection Components
GWWN91-11743Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Speaker System

    Refer to, refer to SOUND SYSTEM, REMOVAL AND INSTALLATION .

  2. Radio/RNS -RX1-

    Refer to, refer to RADIO/NAVIGATION SYSTEM, REMOVAL AND INSTALLATION .

  3. Multifunction Steering Wheel

    Refer to, refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .

  4. CAN Bus
  5. External Audio Source Connection -R199-

    Refer to, refer to External Audio Source Connection -R199-, REMOVAL AND INSTALLATION .

  6. LF Wire
    • Between the External Audio Source Connection -R199- and External Multimedia Device Interface -R215-
  7. Input Devices
    • MP3 player
    • Memory sticks
    • iPod
  8. Adapter Wire
    • Depending on the input device to be connected
  9. External Multimedia Device Interface -R215-
  10. Power Supply Connection
  11. LF Wire
    • Between the External Multimedia Device Interface -R215- and Radio/RNS -RX1-
