Rear Window Assembly Overview

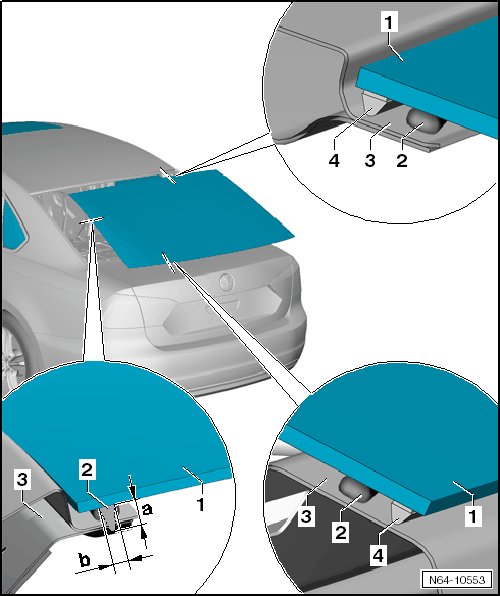

Fig 1: Exploded View Of Rear Window Assembly Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Window
- Removing and Installing, refer to REAR WINDOW
PUR Adhesive Sealant
- Bead diameter: -Width b- = 7 mm -Height a- = 10 mm (including the precoating, residual material on the window and the window flange)
- Minimum curing time, refer to MINIMUM CURING TIME FOR BONDED WINDOWS
Body Flange
Spacer
