Washer Fluid Level Switch: Service and Repair

Windshield Washer Fluid Level Sensor (G33)

• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove the front bumper cover.

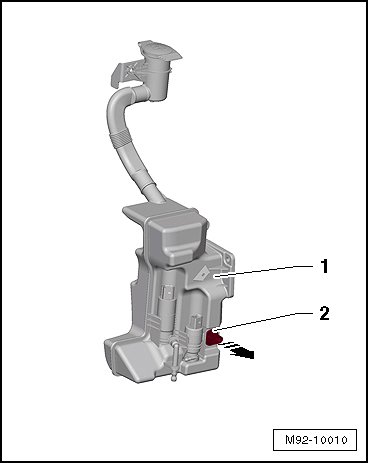

- Release and disconnect the windshield washer fluid level sensor connector - 2 -






- Pull the windshield washer fluid level sensor - 2 - out of the rubber seal on the container - 2 -.

- Catch any draining washer fluid in a suitable container.

Installing

Installation is performed in the reverse order of removal. Note the following:

- Bleed the headlamp washer system after finishing assembly, refer to => [ Headlamp Washer System, Bleeding ] Procedures.
