Transmission, Transporting

Transmission, Transporting

Special tools, testers and auxiliary items required

• Engine Sling (2024 A)

• Shackle (10-222 A/12)

• Transmission Support Jig (3336)

Always secure heavy parts when transporting them.

Remember there is oil in the transmission. Do not turn the transmission with the vents facing downward when transporting or when it is on the assembly stand. The oil will leak out.

• Remove the vent cap if necessary and use an oil tight plug.

Transmission, Transporting

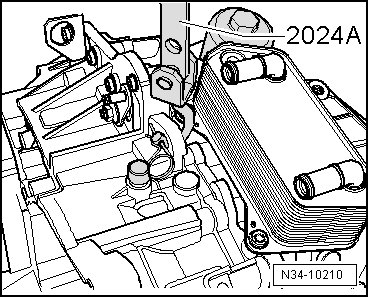

- Use appropriate lifting tools, for example part of the lifting tackle (2024 A) and shackle (10-222 A/12) (not illustrated).

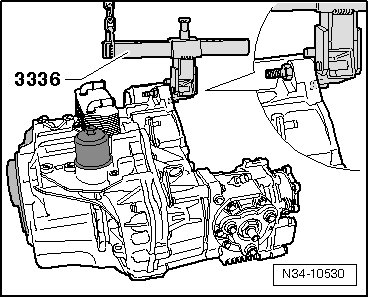

The transmission can also be lifted using the transmission support jig (3336).
