Steering Column Electronics Control Module -J527-







Control Modules

Steering column electronics control module -J527-

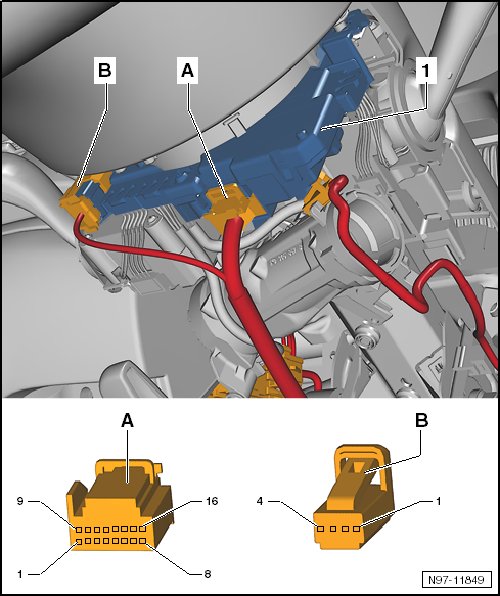

1 Steering column electronics control module -J527-
Component Location:
• near the steering column switch
Pin Connectors:
• A16-pin connector -T16l- on wiring harness
• B4-pin connector -T4k- on wiring harness
