2.5L

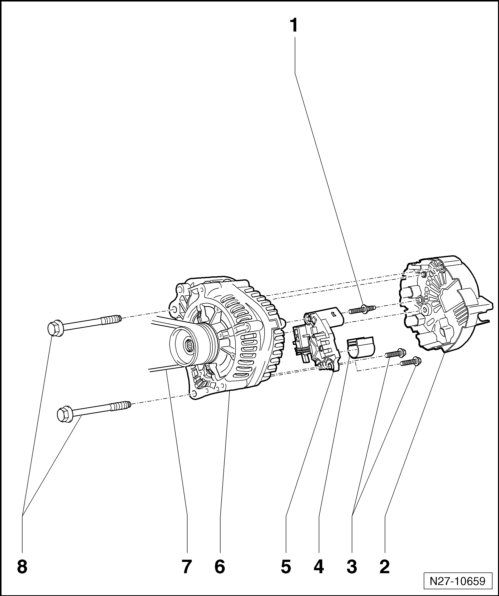

Generator Overview






1 Hex Bolt With Washer and Threaded Piece

• 2 Nm

2 Protective Cap For Generator

3 Phillips Head Screws

• 2 Nm

4 Protective Cap For Carbon Brushes

5 Voltage Regulator

• Removing and installing voltage regulator, refer to => [ Generator Voltage Regulator ] Service and Repair.

6 Generator

• Generator, removing and installing, refer to => [ Generator ] Generator.

• Generator (GEN), checking, refer to=> [ Generator (C), Checking ] Testing and Inspection.

• Securing B+ wire to generator, refer to=> [ B+ Wire Connection to Generator ] Procedures.

• Removing and installing the ribbed belt pulley, refer to=> [ Ribbed Belt Pulley on Generator ] Service and Repair.

7 Ribbed Belt

• Ribbed belt, checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection.

• Removing and installing the ribbed belt pulley, refer to => [ Ribbed Belt Pulley on Generator ] Service and Repair.

8 Collar Bolts

• 20 Nm

No Illustration

• B+ wire nut to rear side of generator: 20 Nm

• Wire holder nut to the back of the generator: 3.2 Nm
