Cylinder Head - Specifications

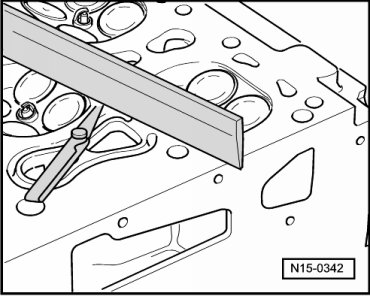

Checking the Cylinder Head for Distortion







Straight Edge 500 mm (VAS 6075)
Feeler Gauge
Max. permissible distortion: 0.05 mm

ALWAYS REPLACE HEAD BOLTS

Intake Manifold Torque & Sequence Specifications

Exhaust Manifold Torque & Sequence Specifications

Camshaft Gear/Sprocket Torque Specifications
