Crankshaft, Cylinder Block - Fastener Tightening Specifications






Fastener Tightening Specifications






• 1 Always replace

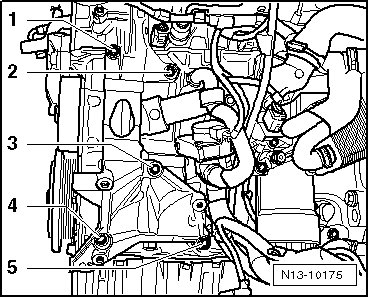

Accessory Bracket Bolt Tightening Sequence and Specification






- Install and tighten the bolts - 2 and 4 - hand tight.

- Install and tighten the bolts - 1, 3 and 5 - hand tight.

- Tighten all the bolts to 25 Nm in a diagonal sequence.
