Fastener Tightening Specifications

Fastener Tightening Specifications






• 1 Always replace

• 2 Tighten the bolts diagonally and in multiple stages.

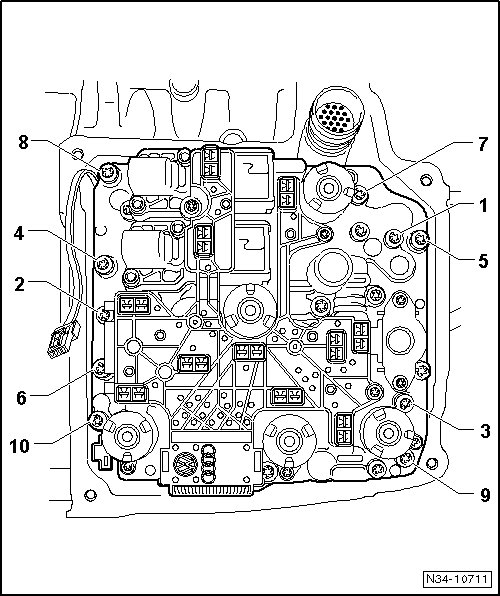

Mechatronic Unit Bolt Tightening Sequence and Specification






- Install the new bolts - 1 through 10 - hand tight.

- Tighten all the bolts in sequence - 1 through 10 - to 5 Nm + an additional 90 (1/4) turn, starting with bolt - 1 -.
