Passenger Occupant Detection System Control Module Bracket

Passenger Occupant Detection System Control Module Bracket

Removing

- Attach the fixture for seat repair (VAS 6136) to the engine/transmission holder (VAS 6095).

Vehicles with Seat Height Adjustment

- Bring seat to the uppermost position.

All Vehicles

- Remove the front seat.

- Secure the seat on the fixture for seat repair (VAS 6136).

- Remove the passenger occupant detection system control module (J706). Refer to => [ Passenger Occupant Detection System Control Module ] Passenger Occupant Detection System Control Module.

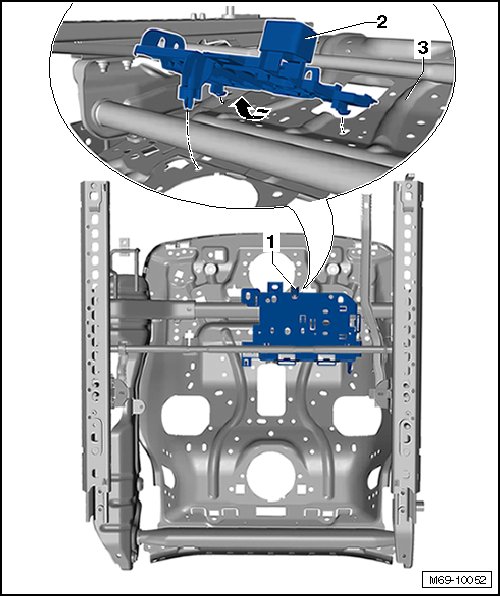

- Loosen the clips - 1 -.

- Remove the bracket - 2 - from the seat frame - 3 - in - direction of arrow -.






Installation

- Install in reverse order of removal.
