Driver seat adjustment control module -J810-







Control Modules

Driver seat adjustment control module -J810-

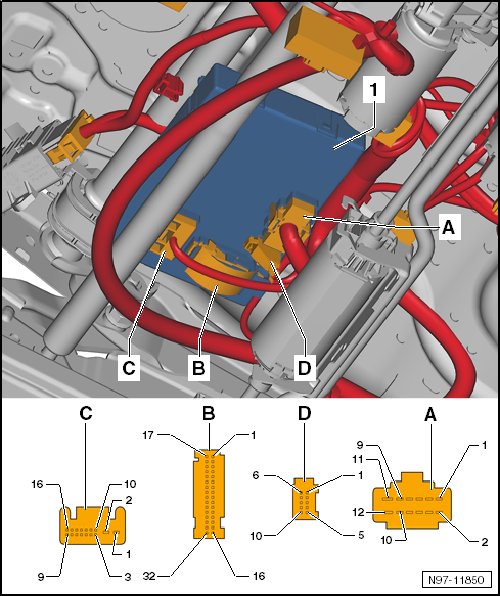

1 Driver seat adjustment control module -J810-
Component Location:
• in the driver seat pan
Pin Connectors:
• A12-pin connector -T12fv-
• B32-pin connector -T32bv-
• C16-pin connector -T16fv-
• D10-pin connector -T10sv-
