Power Distribution Module: Locations







Control Modules

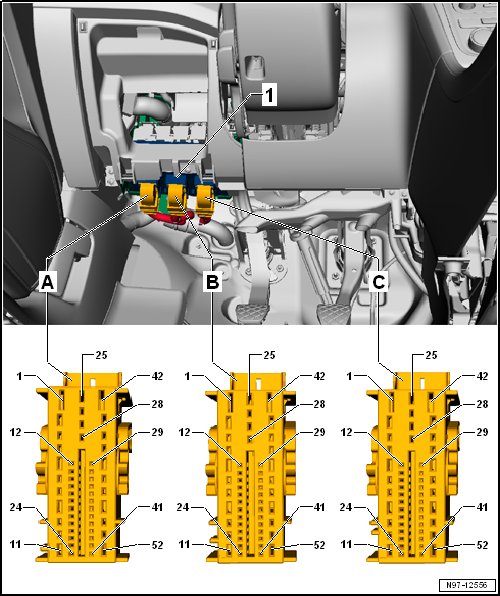

Vehicle electrical system control module -J519-







A - 52-pin connector -T52a- black

B - 52-pin connector -T52b- white

C - 52-pin connector -T52c- brown
