Relay Carrier on Vehicle Electrical System Control Module (J519)

Relay Carrier on Vehicle Electrical System Control Module (J519)

The relay panel on the vehicle electrical system control module is attached to the instrument panel central tube and cannot be removed without removing the instrument panel.

The individual relay sockets can be removed without having to remove the relay panel.

• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove the left trim on the driver side.

- Remove the relay from the relay panel.

• The number of relays is dependent on vehicle equipment.

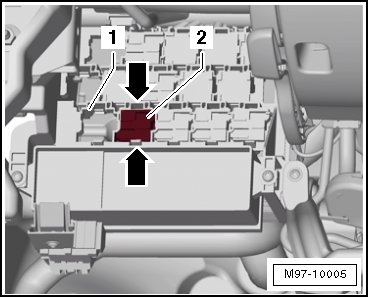

- Clip the tabs - arrows - toward the outside and push the connector - 2 - through the relay panel - 1 -.






Installing

Install in reverse order.
