Axle Alignment Procedure Overview

Axle Alignment Procedure Overview

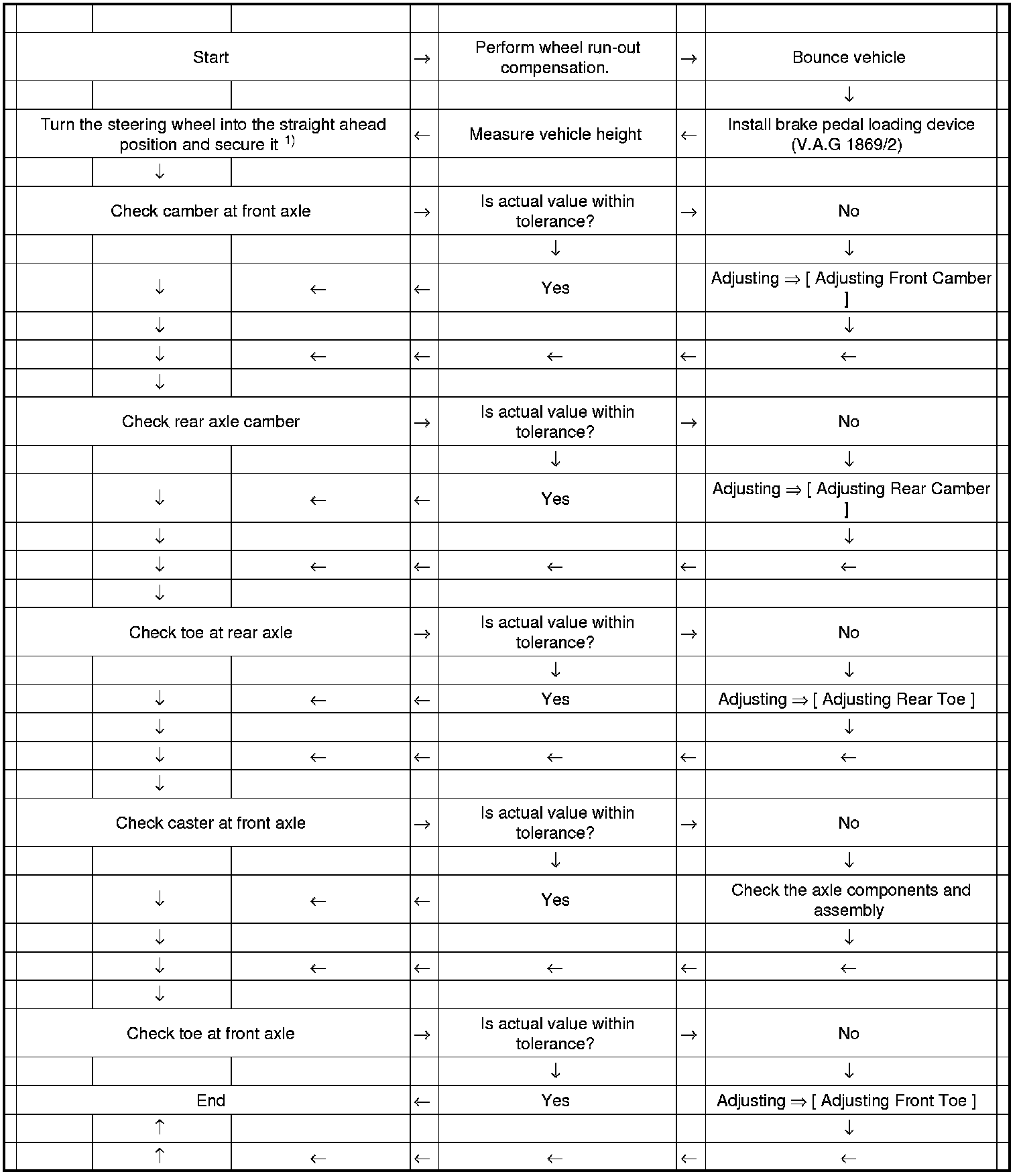

Observe The Following Work Sequence!

- Note the information in the alignment equipment.






Measuring Procedure






1) If steering wheel is crooked at end of alignment procedure, it must be straightened. Perform a basic setting on the steering angle sensor (G85) using the Vehicle diagnostic tester.
