Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor G308

Removing

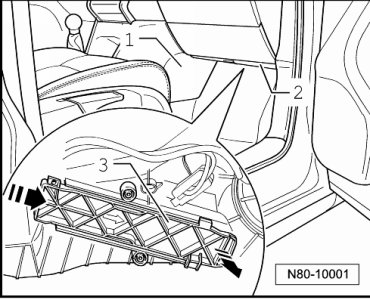

- Remove the cover - 1 - in the front passenger footwell.






- Disconnect the connector - 2 - from the evaporator temperature sensor - 1 -.






- Rotate evaporator temperature sensor in - direction of arrow - and remove.

Installing

Install in reverse order of removal.
