Right Vent Temperature Sensor G151

Right Vent Temperature Sensor G151

Removing

- Remove the glove compartment. Refer to Storage Compartments and Covers under.

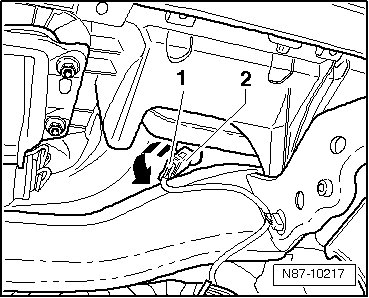

- Disconnect the connector - 1 - from the right vent temperature sensor.






- Turn the right vent temperature sensor - 2 - 90° in the- direction of the arrow - and remove it from the air guide channel.

Installing

- Install the right vent temperature sensor in the reverse order of removal.
