Driver/Front Pass Door Control Module -J386- / -J387-






Door Control Units - Connector Views

Driver/Front passenger door control module -J386- / -J387-



High Line 16 Pin Connector












Low Line 16 Pin Connector

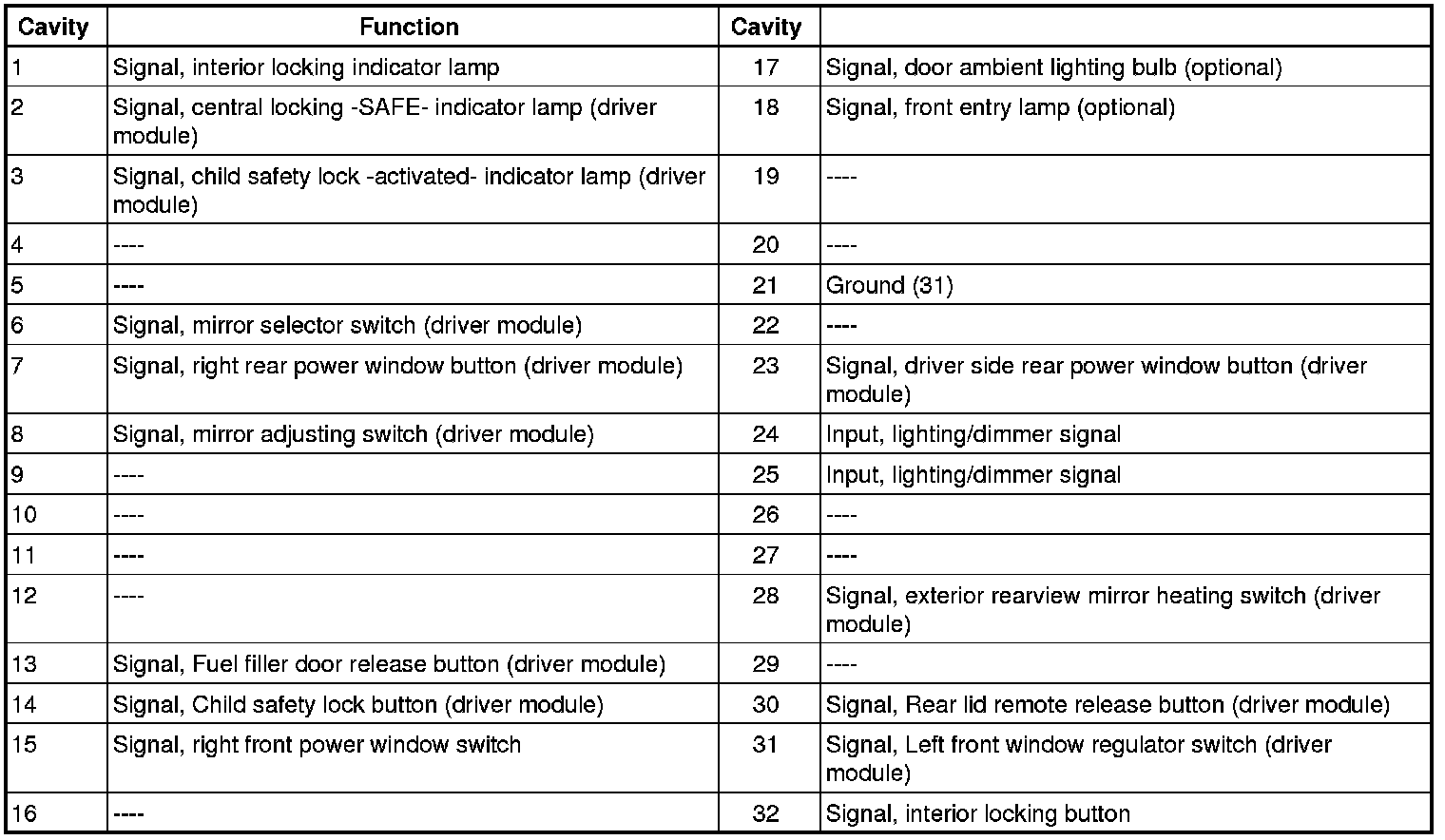

32 Pin Connector












20 Pin Connector
