Cellular Phone

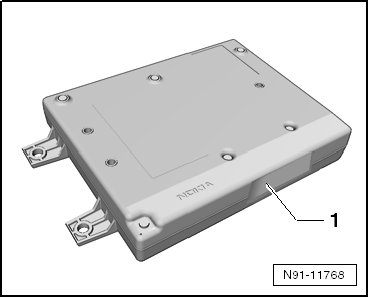

Cell Phone Operating Electronics Control Module (J412) Connector Assignments

Connector

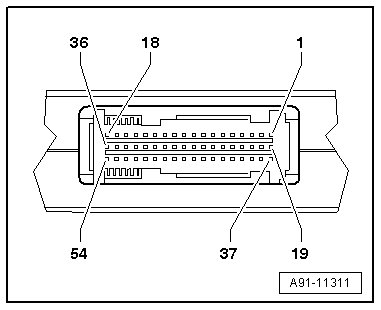

1. 54-pin connector


B - 54-pin connector





1 Terminal 30
2 Terminal 31
3 Not assigned
4 LF (+) L to radio/RNS (RX1)
5 LF (-) L to radio/RNS (RX1)
6-7 Not assigned
8 LF (+) R to radio/RNS (RX1)
9 LF (-) R to radio/RNS (RX1)
10 Terminal 31 shield
11 Telephone Microphone (R38) (+):
12 Telephone Microphone (R38) (-):
13-16 Not assigned
17 CAN bus, high
18 CAN bus, low
19-54 Not assigned
