A/C Control Module -J301-

Control Modules

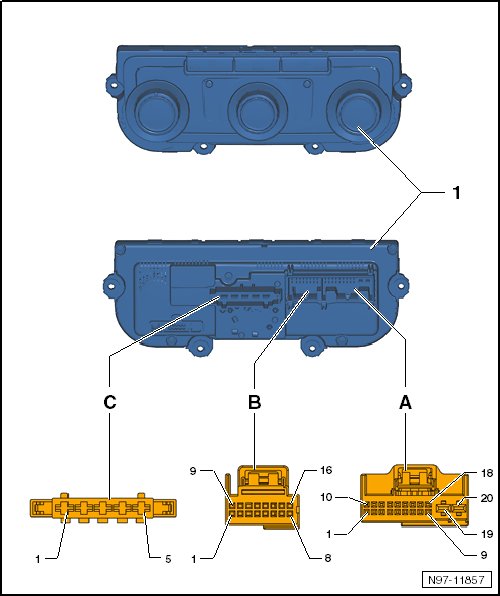

A/C control module -J301-







1 A/C control module -J301-
Component Location:
• in the center console
Pin Connectors:
• -A20-pin connector -T20c- on wiring harness
• -B16-pin connector -T16e- on wiring harness
• -C5-pin connector -T5- on wiring harness
