In Glove Compartment

In Glove Compartment

Removal


• Turn off the ignition and all electrical consumers.

• Remove the key.

- Disconnect any devices connected to the multimedia system control module.

- Remove the glove compartment.

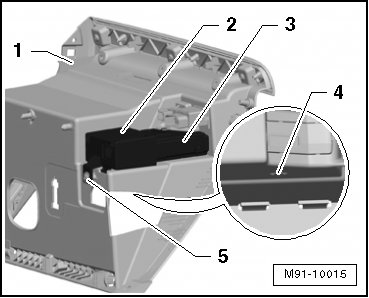

- Remove the screw - 5 - from the connector - 2 -.






- Remove the screw - 4 - from the inside.

- Remove the multimedia system control module - 3 - with the connector - 2 - from the glove compartment - 1 -.

- Disconnect the connector - 2 - from the multimedia system control module - 3 -.

Installation

Install in reverse order of removal.

Torque specifications: 1.5 Nm
