Special Tools

Special tools and workshop equipment required

• Removal Wedge -3409-
  Fig 1: Identifying Wedge 3409

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Tool Set SW 17 -T10395-

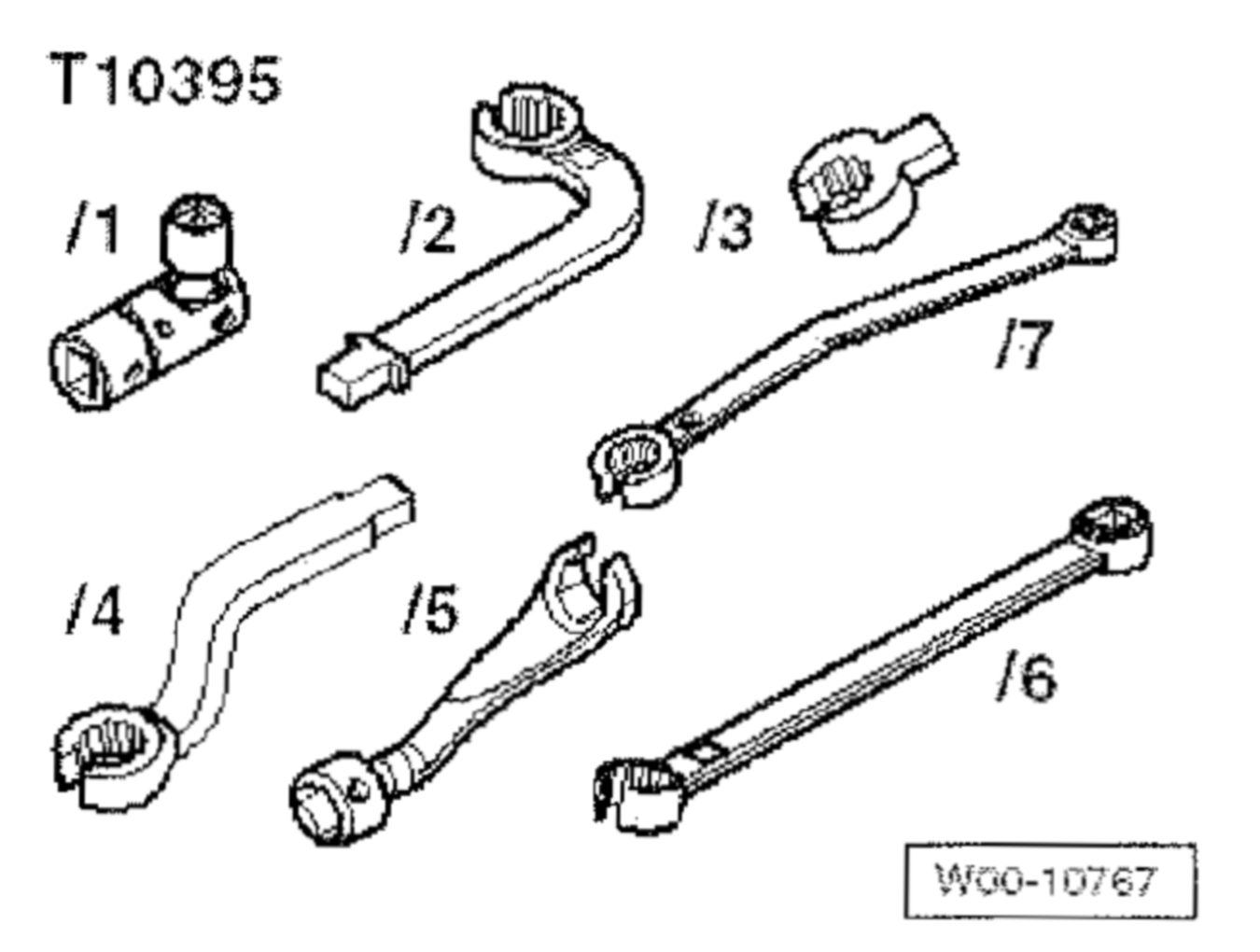

  Fig 2: Identifying Tool Set SW 17 -T10395

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench V.A.G 1331
  Fig 3: Identifying Torque Wrench (5 To 50 Nm) V.A.G 1331

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Assembly Tool SW 17 -V.A.G 1331/6-
  Fig 4: Identifying V.A.G 1331/6

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose clamps up to 40 mm diameter 3093
  Fig 5: Identifying Hose Clamps 3093

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Drip Tray For Workshop Hoist -VAS6208-
  Fig 6: Identifying Drip Tray For Shop Crane VAS 6208

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• A/C Service Station -ROB 134APF- or succeeding model.
• Basic Test Box -V.A.G 1598/14-
  Fig 7: Identifying Test Box (Basic Unit) V.A.G 1598/14

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Test box V.A.G 1598/42
  Fig 8: Identifying V.A.G 1598/42 Test Box

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Template V.A.G 1598/47-2
• Test Adapter -V.A.G 1598/47-
• ROB 134 APF (or succeeding model)
• Ratchet Insert 1/4 -VAS 6234-
• Adapter Set With Service Connection -T10364-
• Torque Wrench -V.A.G 1783-
  Fig 9: Identifying Torque Wrench VAG 1783, A/C Service Station VAS 6007A, Ratchet Insert VAS 6234 And Adapter Set T10364

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
