High Pressure Sensor -G65- Common Rail
Special tools and workshop equipment required
- Torque Wrench V.A.G 1331
- Assembly tool SW 17 V.A.G 1331/6
Removing
-- When working on the refrigerant circuit, note the information, refer to REFRIGERANT CIRCUIT, SPECIALIZED REPAIRS .
- Disconnect the connector from the high pressure sensor
NOTE:
If when loosening the high pressure sensor for longer than 1 second coolant is leaking, the high pressure sensor should be secured again and the coolant drained. The check valve in the refrigerant lines is defective and must be replaced.
-- Disconnect the connector from the high pressure sensor.
CAUTION:
Counterhold the connection -2- with an open-end wrench to prevent damaging the refrigerant line.

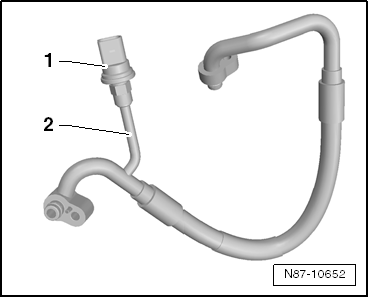

-- Remove the high pressure sensor -G65- -1- from the refrigerant line -2-.
Installing
Install in reverse order of removal. When doing this, note the following:
-- Replace the o-ring.
NOTE:
High pressure sensor tightening specification: 8 ± 1 Nm.
