Engine Assembly - Fastener Tightening Specifications

Fastener Tightening Specifications






Engine Mount





A = 20 Nm + an additional 90° (1/4) turn (Note 1)

B = 40 Nm + an additional 90° (1/4) turn (Note 1)

C = 60 Nm + an additional 90° (1/4) turn (Note 1)

Transmission Mount





1 = 40 Nm + an additional 90° (1/4) turn (Note 1)

2 = 60 Nm + an additional 90° (1/4) turn (Note 1)

Pendulum Support





• First, secure the pendulum support to the transmission and then to the subframe.

A = Strength category 8.8 = 40 Nm + an additional 90° (1/4) turn (Note 1)

A = Strength category 10.9 = 50 Nm + an additional 90° (1/4) turn (Note 1, 2)

B = 100 Nm + an additional 90° (1/4) turn (Note 1)

• (Note 1) Always replace

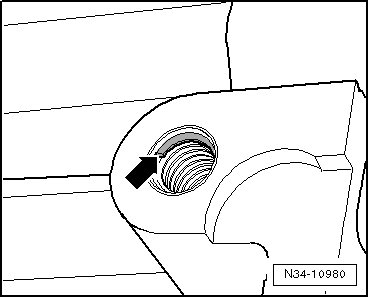

• (Note 2) On a manual transmission, only use bolts with a strength category of 10.9 if threaded inserts (for example, Heli-Coil(R)) are installed. Identifying feature: Section on first threads - arrow -.
