Front Door Window Guide

Front Door Window Guide

• The following describes removing and installing the right window guide only. Removing and installing the left window guide is identical.

• Do not bend window recess seal when lifting off!

Removing






The exterior mirror, the window shaft strip and the trim have been removed.

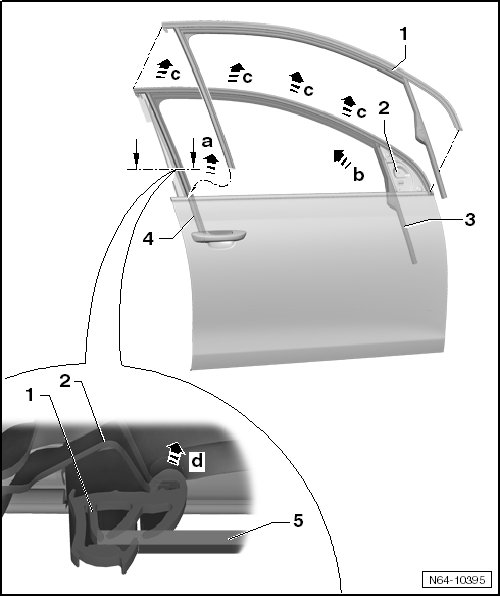

- Remove the window guide - 1 - out of the mounts - 3 and 4 - - arrows a and b -.

- From the inside, fold back the sealing lip on the window guide - 1 - from the window frame - arrow d -.

- Starting the rear, pull the window guide - 1 - evenly - arrows c - off the door flange - 2 -.

Installation

To install, perform the steps used for removal in reverse order.

• A function test must be performed before door trim is installed.

• While installing window guide, make sure it is seated evenly (wind noise).
