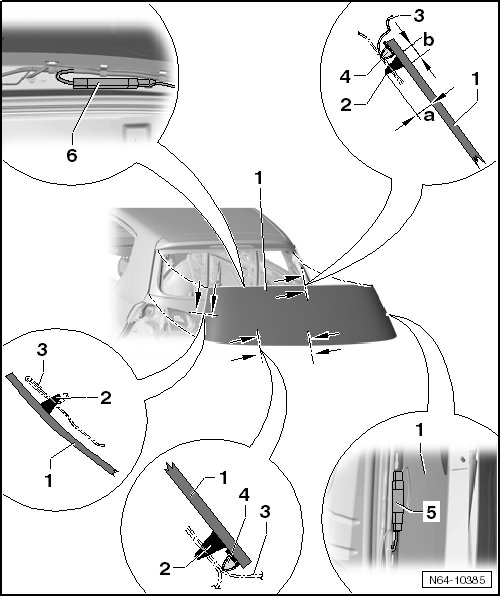

Rear Window Overview

Rear Window Overview






1 Rear Window

• Removing rear window, refer to => [ Undamaged Rear Window, Removing ] Undamaged Rear Window, Removing.

2 PUR Adhesive Sealant

• Bead diameter: width = 6.5 mm - dimension b - height = 10 mm - dimension a - (including pre-coating, residual material on window glass and window flange).

• Apply the bead of adhesive on the side edge of the window glass.

• Minimum curing time, refer to => [ Minimum Curing Time ] Minimum Curing Time.

3 Body Flange

4 Spacer

5 Window Defrosting Connector

6 Antenna Connectors
