Transmission Input Speed Sensor G182

Transmission Input Speed Sensor G182

Removing

- Remove the valve body. Refer to => [ Valve Body ] Service and Repair.

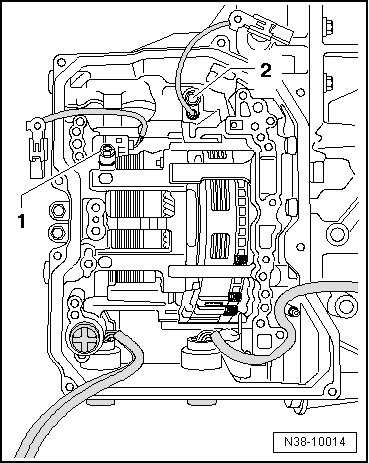

- Remove the transmission input speed sensor bolt - 1 -.






- Remove the transmission input speed sensor from the transmission.

Installing

Install in reverse order of removal. Pay attention to the following:

- Press the sensor all the way into the transmission.

- Install the transmission input speed sensor bolt - 1 -. Tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

- Install the valve body. Refer to => [ Valve Body ] Service and Repair.
