Multifunction steering wheel control module -J453-

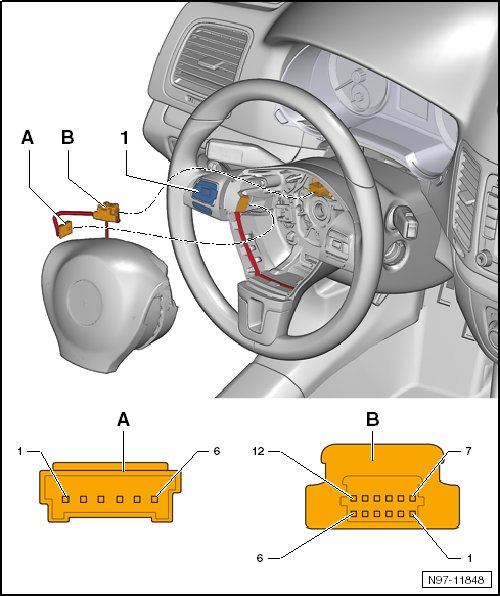

Control modules in front part of vehicle

Multifunction steering wheel control module -J453-







1 Multifunction steering wheel control module -J453-
in the Owner's Manual for the Left multifunction buttons on steering wheel -E440-
Pin Connectors:
• -A6-pin connector -T6bo-
• -B12-pin connector -T12k-
