Steering Control Module: Locations







Control modules in front part of vehicle

Power Steering Control Module -J500-

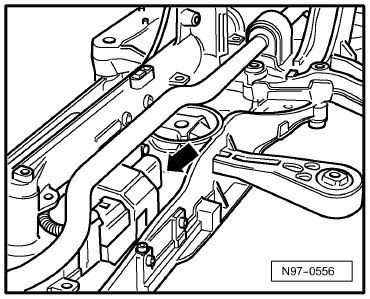

Component Location:


On the steering on the center subframe -Arrow-

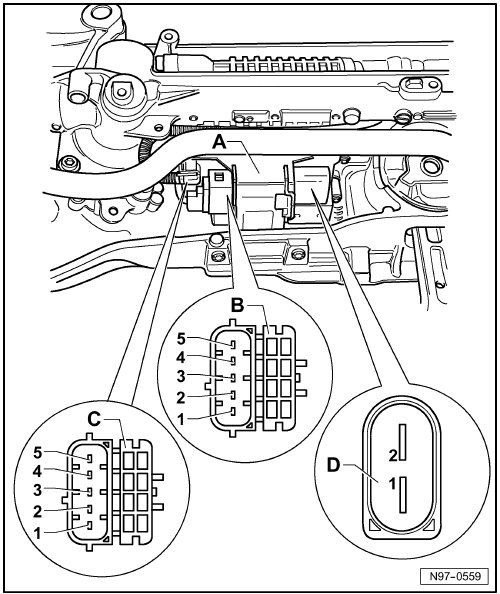

Pin Arrangements:







A - Power Steering Control Module -J500-
Pin Connectors:

B - 5-pin connector -T5g-

C - 5-pin connector -T5h-

D - 2-pin connector -T2a-
