2.5L Manual

Starter

Removal

- Disconnect the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove the engine cover and the air filter.

- Slide the cap off the solenoid switch in - direction of arrow -.






- Remove positive wire - 1 - and disconnect harness connector of terminal 50 - 2 -.

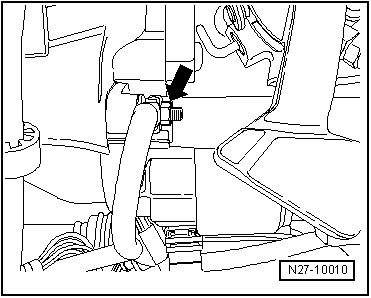

- Remove the ground wire from the starter bolt - arrow -.

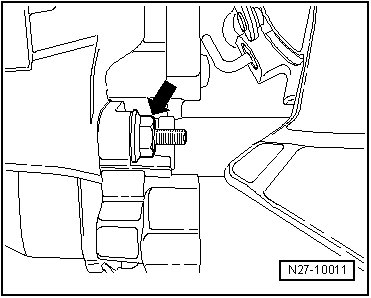

- Remove mounting bolt for starter - arrow -.






- Remove noise insulation.

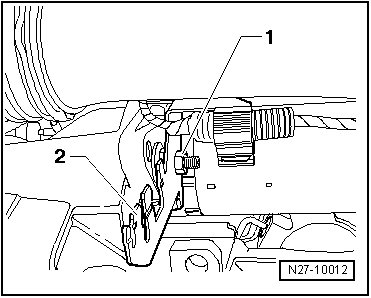

- Remove nut - 1 - from lower mounting bolt of starter.






- Remove wire retainer - 2 -.

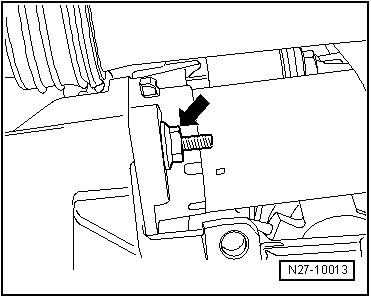

- Remove lower mounting bolt for starter - arrow -.






- Remove the starter downward and out from the vehicle.

Installation

Install in reverse order of removal, noting the following:

- Tighten the threaded connections to the specification given in the assembly overview, refer to => [ Starter Overview ] Service and Repair.
