Golf R

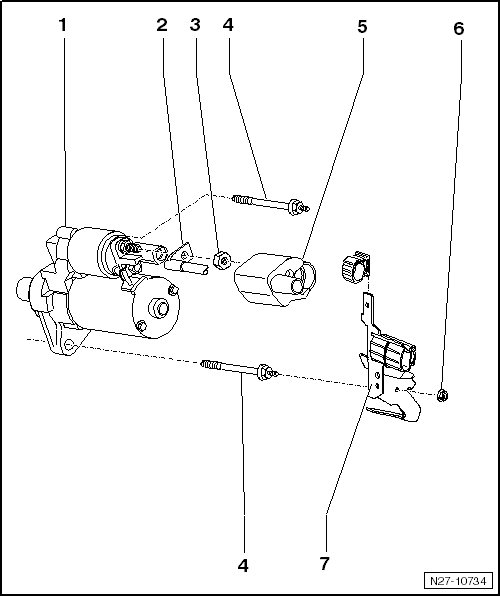

Starter Overview






1 - Starter

• Removing and installing, refer to => [ Starter ] Service and Repair.

• Checking, refer to => [ Starter, Checking ] Testing and Inspection.

2 - Connection B+ Wire to Starter

3 - Mounting Nut B+ Wire to Starter

• 15 Nm

• M8

4 - Starter Bolts

• 80 Nm

• M12

5 - Cap

6 - Mounting Nuts, Wiring Bracket

• 23 Nm

• M8

7 - Wiring Bracket

- - Mounting Bolt, Air Filter Housing to Body

• not illustrated

• 10 Nm
