Air Bag Control Module: Locations

Control modules in front part of vehicle

Airbag Control Module -J234-







- Below the front center console -1-
• Pin Arrangements 50-pin connector -T50- => [ Pin Arrangements : ]
• Pin Arrangements 75-pin connector -T75- => [ Pin Arrangements : ]
• Pin Arrangements 100-pin connector -T100- => [ Pin Arrangements : ]

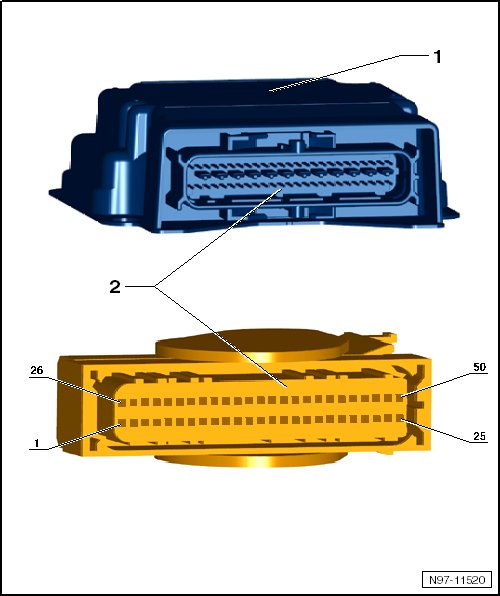

Pin Arrangements 50-pin connector -T50- :







1 Airbag Control Module -J234-
Connector:
2 50-pin connector -T50- on the wiring harness

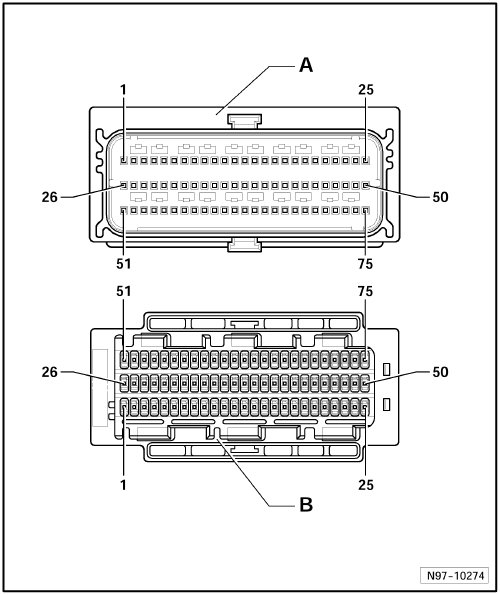

Pin Arrangements 75-pin connector -T75- :







A - Airbag Control Module -J234-
Connector:

B - 75-Pin Connector -T75-, on wiring harness

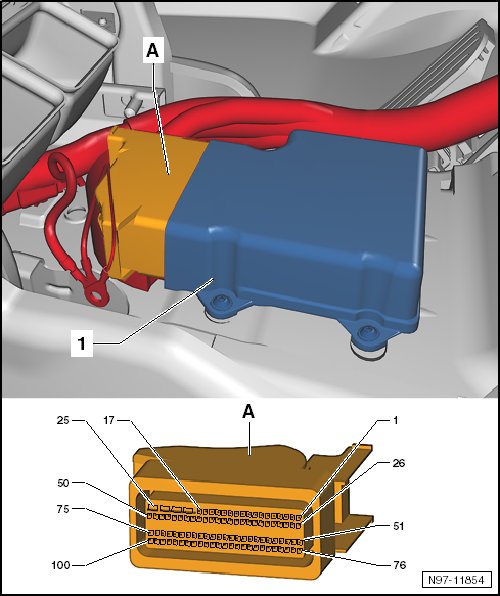

Pin Arrangements 100-pin connector -T100- :







1 - Airbag Control Module -J234-
Connector:

A - 100-pin connector -T100- on the wiring harness
