Position of Relays on (Optional) Lower Vehicle Electrical System Control Module, from November 2011

Relay

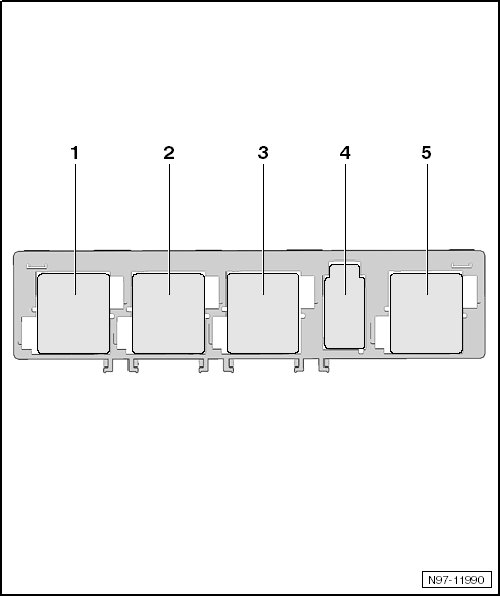

Position of Relays on (Optional) Lower Vehicle Electrical System Control Module, from November 2011







1 - Coolant circulation pump relay -J151- (507)
• Fuse location 1
• Only models with 2.0L gasoline engine

1 - Terminal 50 power supply relay -J682- (507)
• Fuse location 1

1 - Starter relay 2 -J907- (507) 2
• Fuse location 1
• 2 Only models with stop/start system

1 - Fuel pump relay 2 -J49- (646)
• Connection 1/1

2 - Fuel primer relay -J643- (646)
• Connection 2/1

2 - Fuel pump relay -J17- (646)
• Connection 2/2
• Only vehicles with a diesel engine

3 - Low heat output relay -J359- (645)
• Fuse location 3
• Only for vehicles without parking heater

3 - Auxiliary heater operation relay -J485- (645)
• Fuse location 3

4 - High heat output relay -J360- (646)
• Fuse location 4
• Only for vehicles without parking heater

5 - Fresh air blower relay -J13- (644)
• Fuse location 5
