Fuse: Service and Repair

Fresh Air Blower Series Resistor with Fuse (N24)

Removing


Contact with a hot exhaust system can cause severe burns.

Fresh Air Blower Series Resistor With Fuse may be hot.

Let Fresh Air Blower Series Resistor With Fuse cool off before removing.

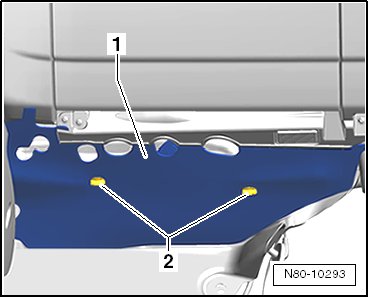

- Remove the plastic screws - 2 - and the partition - 1 -.

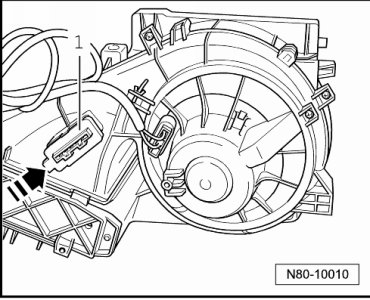

- Disconnect the connector - 1 - on the fresh air blower series resistor with fuse.






- Push the retainer in - direction of arrow - and remove the fresh air blower series resistor with fuse from the heater.

Installing

- Install in reverse order of removal.
