Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor (G308) or Evaporator Vent Temperature Sensor (G263)

Removing

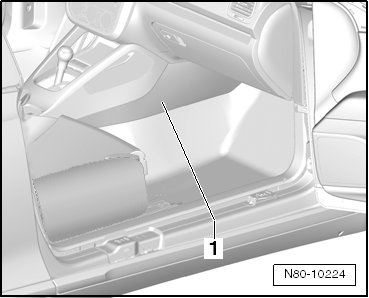

- Remove the right trim on the footwell, Basis - 1 -.






- Remove connector on Evaporator Temperature Sensor or Evaporator Vent Temperature Sensor - 1 -.






- Rotate Evaporator Temperature Sensor or Evaporator Vent Temperature Sensor in - direction of arrow - and remove.

Installing

Install in reverse order of removal.
