Climate Control Exhaust Gas Sensor: Locations







Climatic / Climatronic Systems

Air Quality Sensor

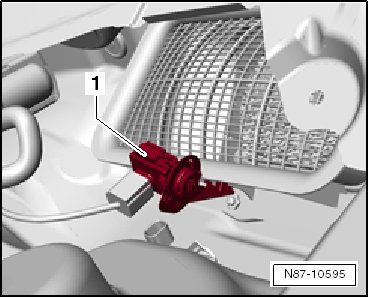

1 - Air Quality Sensor -G238-
- Located at the right front on the intake air grille in the plenum chamber.
