Information Bus: Locations

Control modules in front part of vehicle

Data Bus On Board Diagnostic Interface -J533-

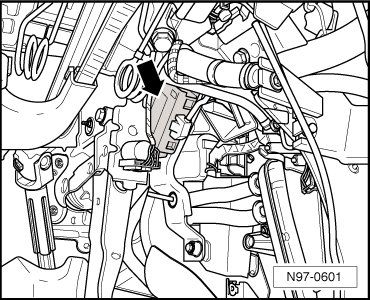

Component Location:


Left-hand drive model: in driver's side footwell,
near center console -Arrow-
Right-hand drive model : In driver's side footwell,
near Vehicle Electrical System Control Module -J519- , behind the relay carrier

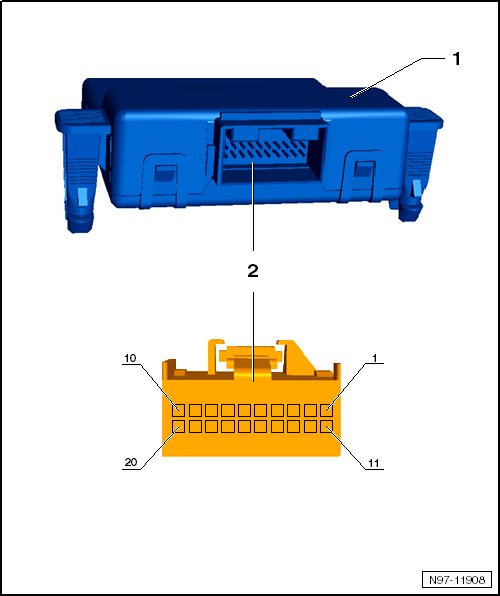

Pin Arrangements:







1 - Data Bus On Board Diagnostic Interface -J533-

2 - 20-pin connector -T20-
