Position of Relays on Upper Vehicle Electrical System Control Module,through October 2009

Relay

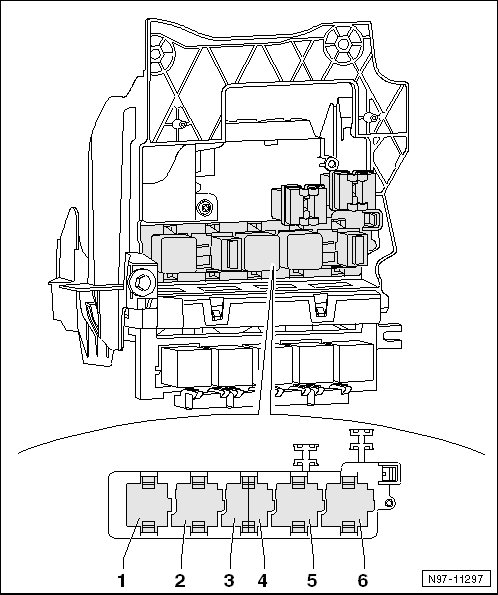

Position of Relays on Upper Vehicle Electrical System Control Module,through October 2009







1 Terminal 15 power supply relay -J329- (643)
• Fuse location 1
2 Load reduction relay -J59- (53)
• Fuse location 2
3 Dual tone horn relay -J4- (449)
• Connection 3/1
4 Headlamp washer system relay -J39- (449)
• Connection 3/2
5 Rear window defogger relay -J9- (53)
• Fuse location 4
6 Terminal 50 power supply relay -J682- (643)
• Fuse location 5

Note:
• -J4- and -J39- are mini relays located on a relay connector panel
