Position of Relays on Lower Vehicle Electrical System Control Module,from November 2009

Relay

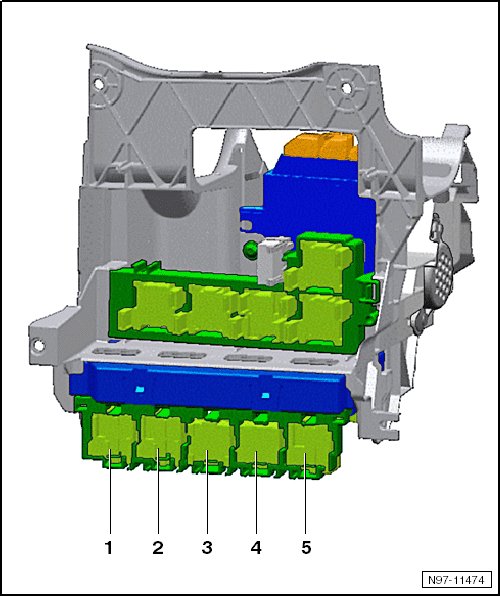

Position of Relays on Lower Vehicle Electrical System Control Module,from November 2009







1 - Fuel pump relay 2 -J49- (646)
• Connection 1/1

1 - Coolant circulation pump relay -J151- (646)
• Connection 1/2

1 - Starter relay 2 -J907- (645)2
• Fuse location 1
• 2 Models with stop/start system

2 - Fuel primer relay -J643- (646)
• Connection 2/1

2 - Fuel pump relay -J17- (646)
• Connection 2/2

3 - Low heat output relay -J359- (645)
• Fuse location 3

3 - Auxiliary heater operation relay -J485- (645)
• Fuse location 3

4 - Fresh air blower relay -J13- (646)
• Fuse location 4

5 - High heat output relay -J360- (645)
• Fuse location 5
